● Dimension: L815 x W500 x H1500mm
● Bollard diameter: 271±1mm
● Height above ground: 1000mm
● Rising time: 4~6s
● LED light: Yes
● Protection level: IP68
● Working temperature: -40℃ ~ +70℃
● Crash rating: China A3 rating, M50, 6800KG/80KMH, equal ASTM K12/M50
● Material: 304 stainless steel
● Color: customized

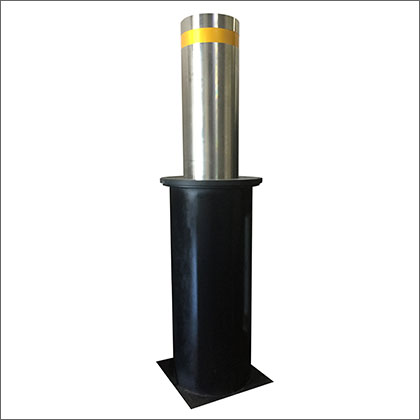

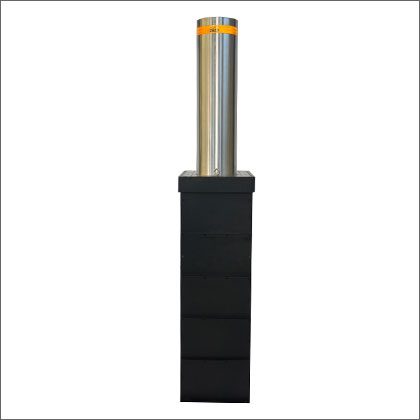

Automatic hydraulic rising bollard HA501 is automatic security barrier systems. These two series of automatic bollard system passed crash tests under China standard <Anti-Riot Lifting Barrier Standard (GA/T 1343-2016)> in 2018 January.
Compare to other standard system, China standard have more higher and clear requirements on equipment work ability after installation. Except crash tests, HA501 automatic bollard passed continues 5000 lifting test, IP68 water proof and dust proof test, temperature test etc.. series of performance tests.
According to different types, equipment lifting time could range from 3 until 5 seconds. With emergency release system, power outage or other emergencies, can be artificially lower, release vehicles.
