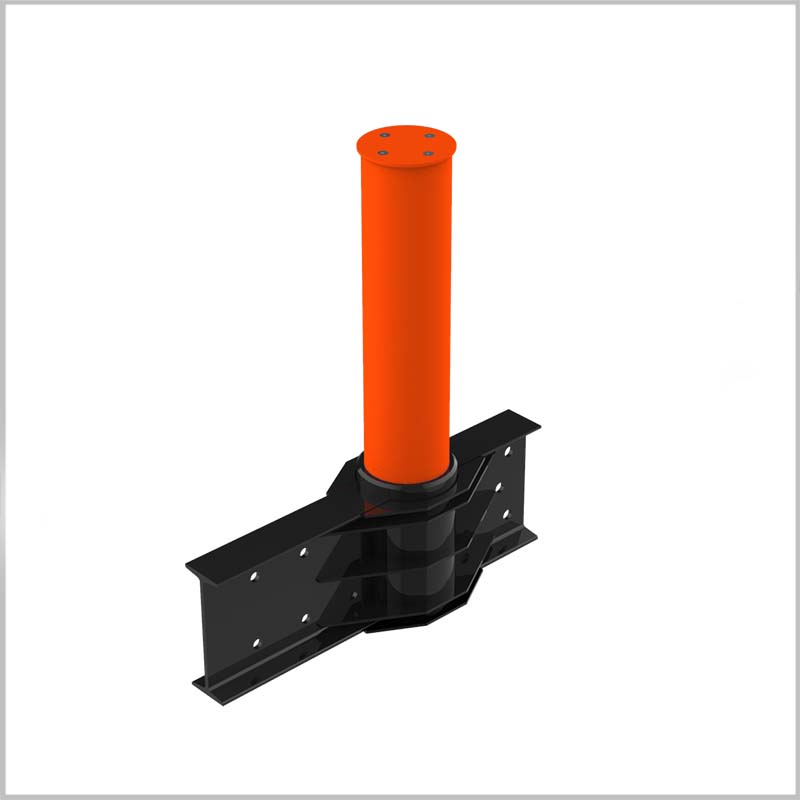

Suprema HB-FM501 Fixed/Removable Bollard
Anti-Terrorist Grade Security with Dual Functionality

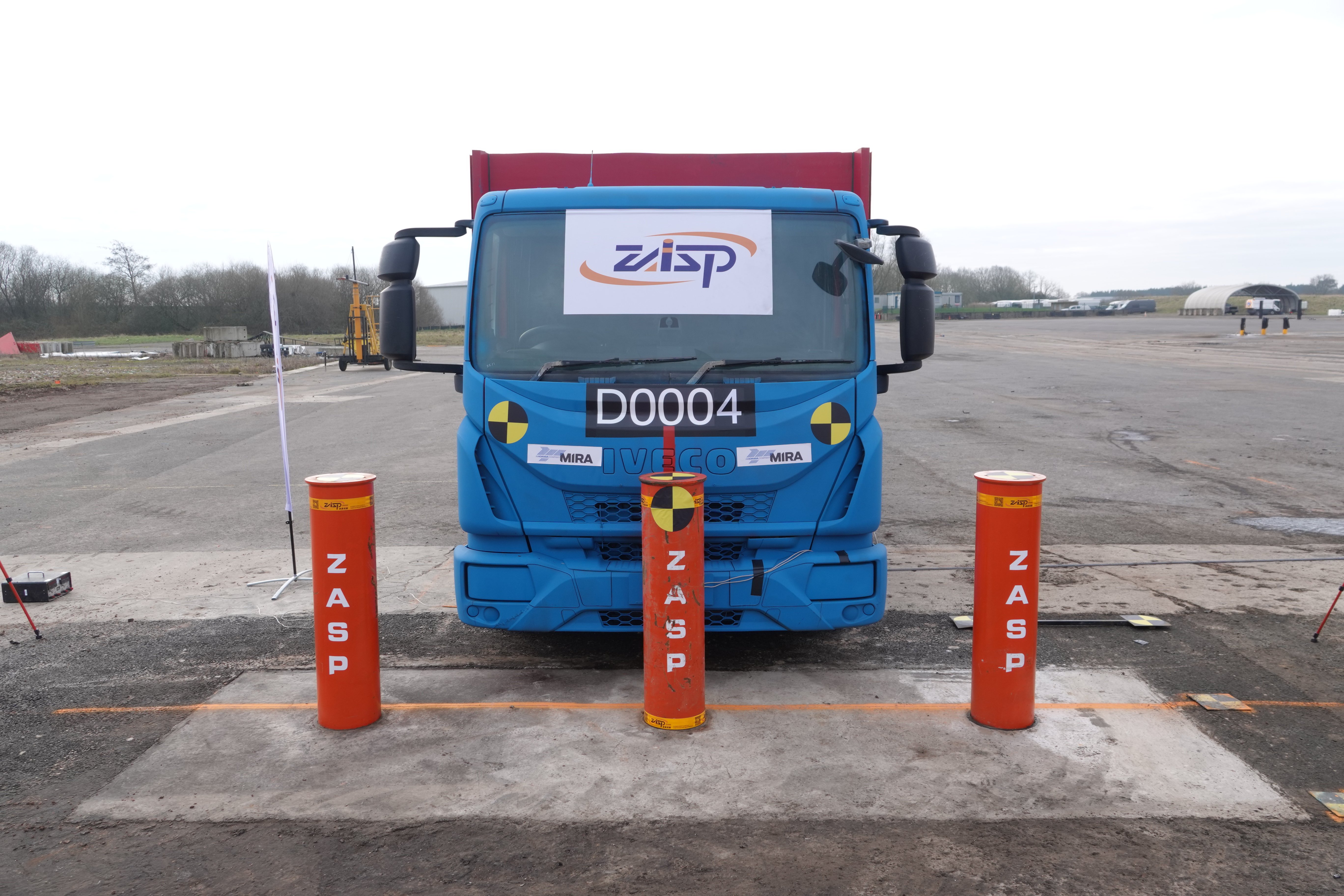

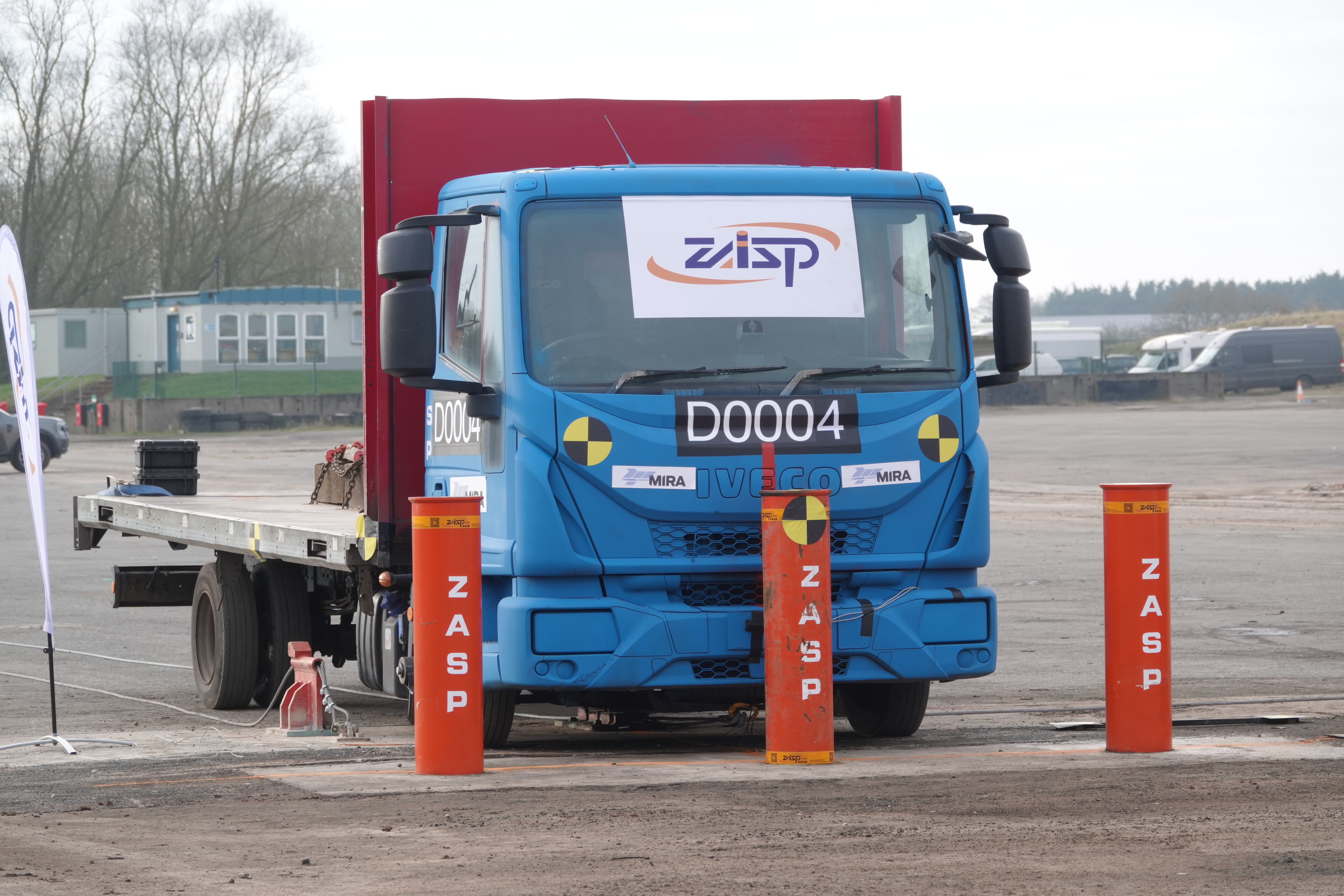

Impact test by 7200kg truck travelling at 80 kph
P1
Key Features
0.4m Intrusion Resistance – Certified to stop 7200kg vehicles at 80 km/h with minimal penetration.
P1 Crash Test Rating – Meets ISO 22343-1:2023 standards for anti-terrorism protection.
Fixed or Removable Design – Versatile installation for temporary or permanent security needs.
500mm Foundation Depth – Ensures stability and durability in high-impact scenarios.
Heavy-Duty Construction – Built with Q345 carbon steel (HDG & RAL paint) or stainless steel options.
Product Overview
The Suprema HB-FM501 is ZASP‘s state-of-the-art bollard system meticulously engineered to provide unparalleled security against vehicular threats. Tailored for the protection of critical infrastructure, this system integrates superior performance with versatile installation options. It is particularly suited for military bases, government facilities, energy plants, and high-traffic commercial areas, ensuring adherence to stringent anti-terrorism standards while offering dual functionality as both a fixed and removable barrier.
Specification
| Product Dimension | 1385mmL*385mmW*1600mmH |
| Diameter | Ф273mm士2mm |
| Foundation Depth | 500mm |
| Height Above Ground | 1100mm士3mm |
| Impact Test | IS0 22343-1:2023 HB-FM501 Fixed/Removable Bollard V/7200[N2A]/80/90:0.4/70.5 |
| Material | Q345 carbon steel |
| Surface Treatment | Q235 carbon steel |
| Color | Hot-dip Galvanized And Powder Coated |
Dimension of HB-FM501 Bollards
Applications
· Critical Infrastructure Protection: Military installations, government buildings, prisons.
· Commercial & Public Security: Shopping centers, corporate campuses, event venues.
· Industrial & Energy Facilities: Power plants, oil refineries, transportation hubs.
Watch our Suprema Bollards in action and see the impact resistance and performance firsthand in this video: Suprema Bollards Video.
Why Choose Suprema HB-FM501 Bollards?
- Unparalleled Strength & Security – Designed for high-threat environments.
- Proven Performance – Successfully crash-tested for real-world protection.
- Versatile Deployment – Adaptable to both fixed and removable installations.
- Long-Lasting Durability – Built with high-quality materials and protective coatings.
The Suprema HB-FM501 Fixed/Removable Bollard is an industry-leading solution for securing high-risk areas. Whether for permanent security installations or temporary access control, this bollard delivers top-tier protection and reliability.
The performance of the Suprema HB-FM501 Fixed/Removable Bollards in rigorous crash tests underscores its unparalleled capabilities in high-security applications. Constructed from high-strength materials and featuring an optimized design, it adheres to stringent international standards, rendering it an exemplary choice for traffic management, safety protection, and public infrastructure security. The HB-FM501 bollard offers a robust solution for mitigating vehicle impacts and safeguarding pedestrian safety. Should you require further information regarding this model or our comprehensive product line, please contact us at your convenience.
